- Maximum Entropy Markov Model Recap
- Labeling Bias problem aoubt MEMM
- Conditional Random Field

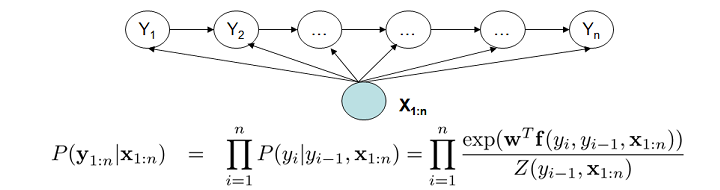

MEMM Recap
- MEMM考虑了上一个状态
- MEMM考虑了整个观测序列
- 更强的表达能力
- 并不需要为 $P(X)$ 建模

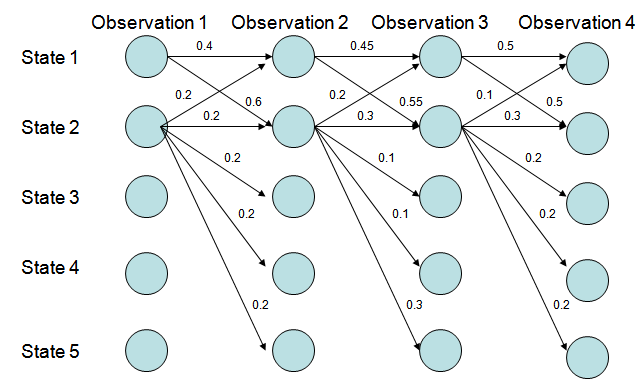

MEMM Labeling Bias
Conditional Random Field
CRFs avoid the label bias problem a weakness exhibited by Maximum Entropy Markov Models (MEMM) and eliminates 2 unreasonable assumption in HMM.
MEMM is locally renormalized and suffers from the label bias problem, while CRFs are globally re-normalized.
HMM and MEMM are a directed graph, while CRF is an undirected graph
Output transition and observation probabilities are not modelled separately.
The inference algorithm in CRF is again based on Viterbi algorithm.
The definition of CRF
图： $G(V,E)$ ; 随机变量 $Y=(Y_v),\ v \in V$
$(X,Y)$ 成为一个条件随机场，当 $Y_v$ 中的任何一个随机变量条件于 $X$ 上服从图马尔可夫属性：$P(Y_{v} \mid X, Y_{w}, w \neq v) = P(Y_{v} \mid X, Y_{w}, w \sim v)$
$w \sim v$ 是指 $w$和$v$ 在图 $G$ 中是邻居关系
条件随机场即全局条件依赖于观测值 $X$ 的随机场

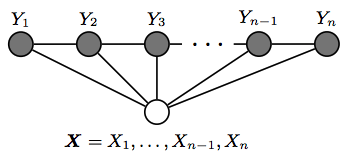

Linear chain CRF
Chain-strucutred CRFs globally conditioned on X

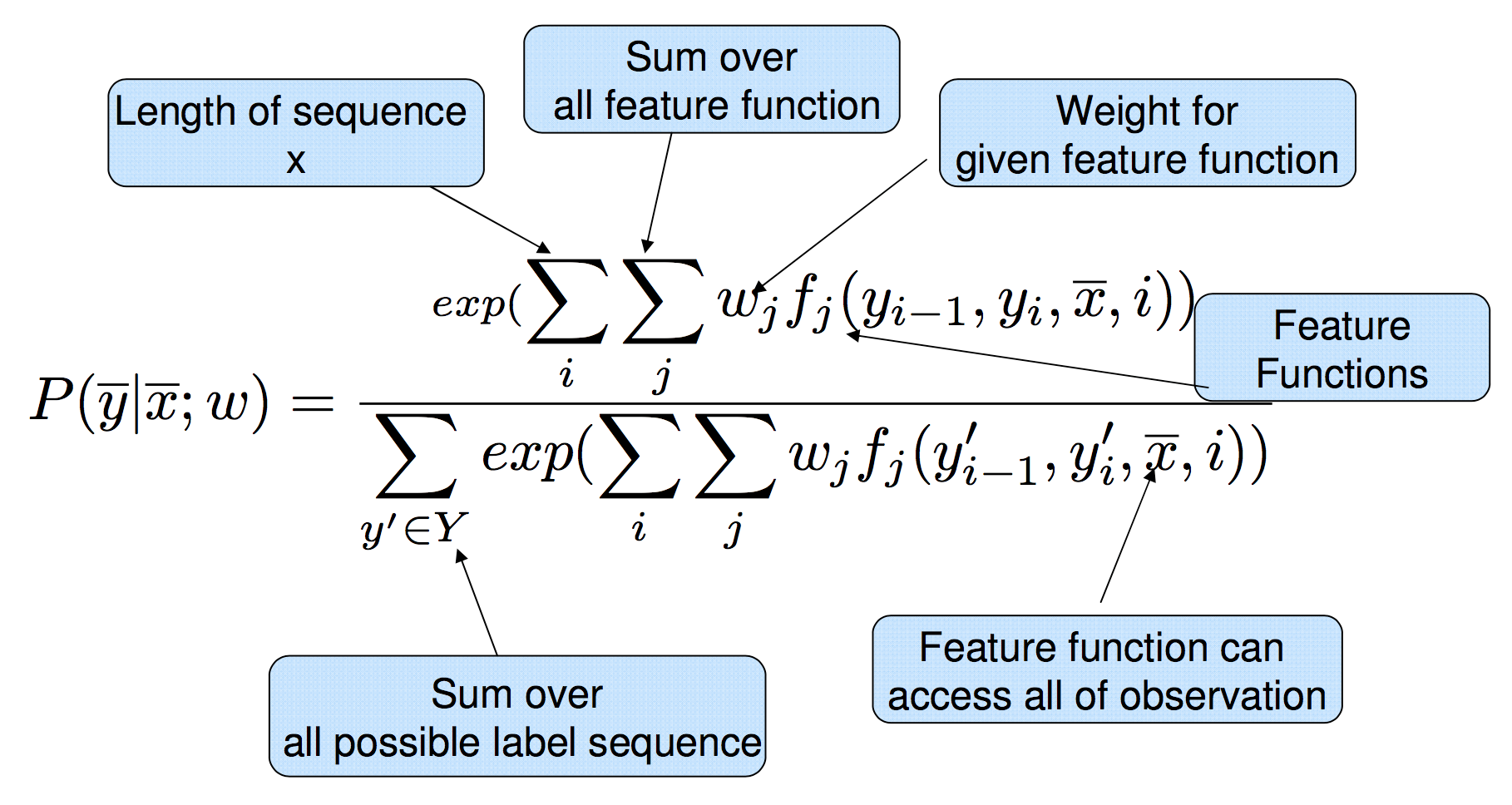

- $P(\bar{y} \mid \bar{x}; \bar{w}) = \frac{\exp(\bar{w} \cdot F(\bar{x},\bar{y}))}{\sum\limits_{\bar{y}' \in Y} \exp(\bar{w} \cdot F(\bar{x},\bar{y}'))}$
- $F (\bar{x},\bar{y}) = \sum\limits_{i} f(y_{i-1}, y_{i}, \bar{x}, i)$
- $F$ will represent a global feature vector defined by a set of feature functions $f1,...,fd$
More detail on CRF

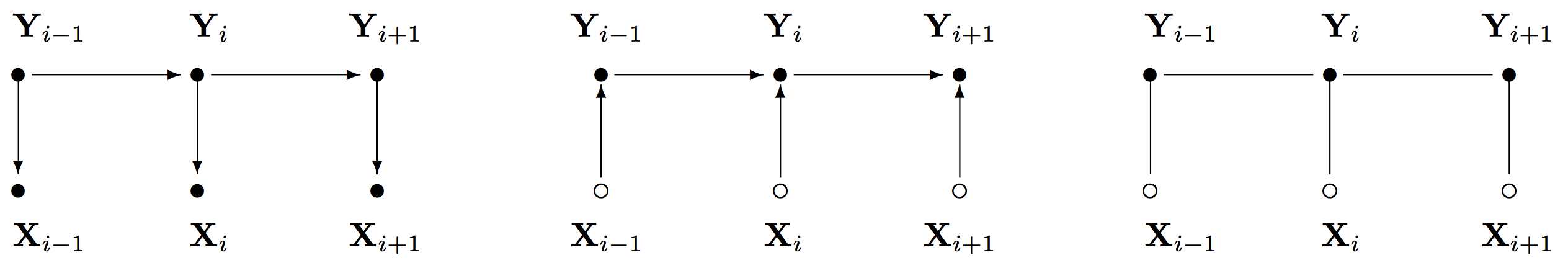

HMM vs MEMM vs CRF
- HMM: $P(\bar{y}, \bar{x}) = \prod\limits_{i=1}^{|\bar{y}|} P(y_{i} \mid y_{i-1}) \cdot P(x_{i} \mid y_{i})$
- MEMM: $P(\bar{y}, \bar{x}) = \prod\limits_{i=1}^{|\bar{y}|} P(y_{i} \mid y_{i-1}, x_{i}) = \prod\limits_{i=1}^{|\bar{y}|} \frac{1}{Z(x,y_{i-1})}\ \exp\bigg( \sum_{j=1}^{N} w_{j} \cdot f_{j}(x,y_{i-1}) \bigg)$
- CRF: $P(\bar{y} \mid \bar{x}, \bar{w}) = \frac{\exp(\bar{w} \cdot F(\bar{x},\bar{y}))}{\sum\limits_{\bar{y}' \in Y} \exp(\bar{w} \cdot F(\bar{x},\bar{y}'))}$
* CRF Inference *
计算 $\bar{y}$ 序列以最大化如下等式：
$\hat{\bar{y}} = \underset{\bar{y}}{\arg\max}\ P(\bar{y} \mid \bar{x}; \bar{w}) = \frac{\exp(\bar{w} \cdot F(\bar{x},\bar{y}))}{\sum\limits_{\bar{y}' \in Y} \exp(\bar{w} \cdot F(\bar{x},\bar{y}'))}$
得到：$\hat{\bar{y}} = \underset{\bar{y}}{\arg\max}\ \sum\limits_{i} \bar{w}\ f (y_{i-1}, y_{i}, \bar{x}, i)$
* CRF Parameters Estimation *
给定训练数据 $\{(\bar{x}_{1}, \bar{y}_{1}), \ldots , (\bar{x}_{m}, \bar{y}_{m})\}$ ,寻找最适合的参数 $\bar{w}$ 就是最大化：
$L(\bar{w}) = \sum\limits_{i=1}^{m} \log p( \bar{x}_{1} | \bar{y}_{1}, \bar{w} )$
得到： $\bar{w}^* = \underset{\bar{w}\ \in {\rm \ I\!R}^{d}} {\arg\max}\ \sum\limits_{i=1}^{m} \log p( \bar{x}_{i} | \bar{y}_{i}, \bar{w}) - \frac{\lambda}{2} \| \bar{w} \| ^{2}$
